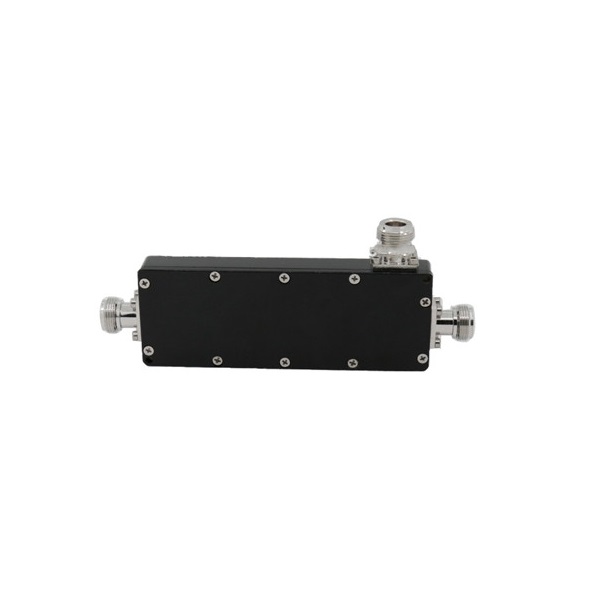

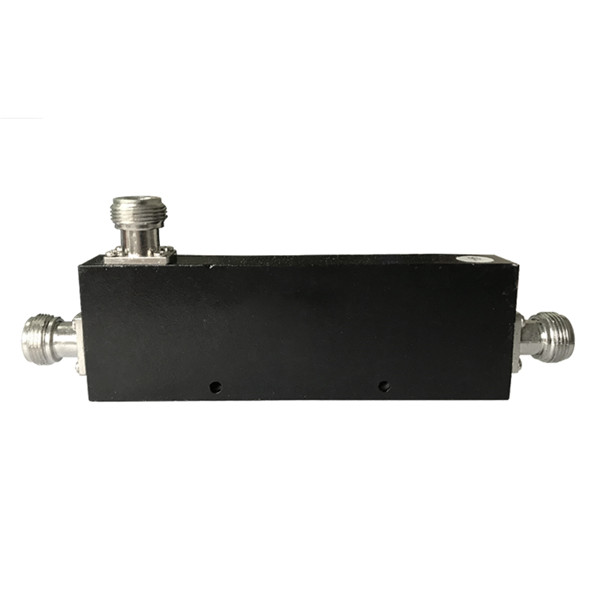

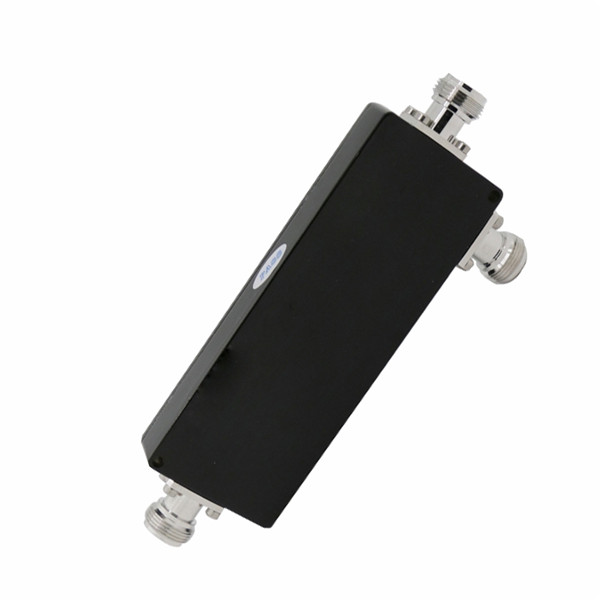

Cavity directional coupler 5/6/7/8/10/13/15/20/25dB

Frequency(MHz)

698-2700MHz

Insertion   Loss

≦2.1/≦1.75

≦1.45/≦1.30

≦0.8

≦0.8/ ≦0.5

≦0.4

≦0.4

Coupling

5/6

7/8

10

13/15

20

25

Accuracy

±0.8/±0.8

±0.8/±0.8

±1.0

±1.0/ ±1.0

±1.2

±1.5

Isolation

≧25/≧26

≧27/≧28

≧28

≧31/≧33

≧38

≧45

VSWR

≦1.25

（PIM 3）

≦-140dBc@2×43dBm

Power

200W

Impedance

50 ohm

RF   Connector

N-female

Color

Black-plated

Temperature

-20~+70

Application

Indoor or Outdoor,   IP60 or IP65

Humidity

5%-95%

Weight(kg)

0.23
