Antennas

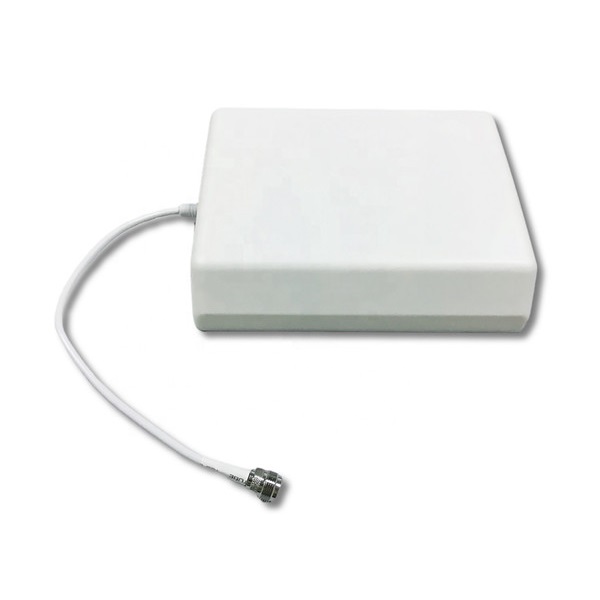

  • 8dBi outdoor panel antenna HY-OPA-8D
8dBi outdoor panel antenna HY-OPA-8D

8dBi outdoor panel antenna HY-OPA-8D

  • Outdoor panel antenna
  • Gain: 8~10dBi
  • Support frequency: 698~2700MHz
  • Pole mounted
  • Product description: HY-OPA-8D, Outdoor panel antenna
  • INQUIRY Buy Now

698-2700MHz Directional Outdoor Panel Antenna

HY-OPA-8D


Feature

●High gainstrong anti-interference ability

Good defense system

●Full day working

●Exquisite appearance

●Optimized dimension

Application

●Indoor coverage system

● CDMA800/GSM900/3G/WLAN/LTE

CDMA800/GSM900/3G/WLAN/LTE system



HY-OPA-8D

Electrical Specifications

Frequency rangeMHz

698806

806960

17102690

BandwidthMHz

108

154

980

GaindBi

5

7

10

Half-power beam   width°

H120 V90

H:70 V:55

H60 V45

VSWR

≤2.0

Input ImpedanceΩ

50

Polarization

Vertical

Maximum input powerW

50

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm   (Height/Width/Depth)

210*180*45

Antenna weightkg

0.57

Operating temperature°c

-4060

Rated Wind Velocitym/s

60

Radome   material

ABS

Radome color

white

Mounting hardwaremm

35-50
