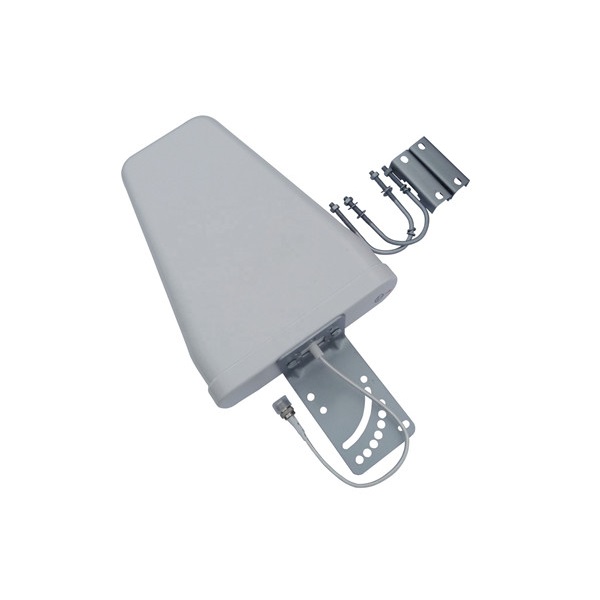

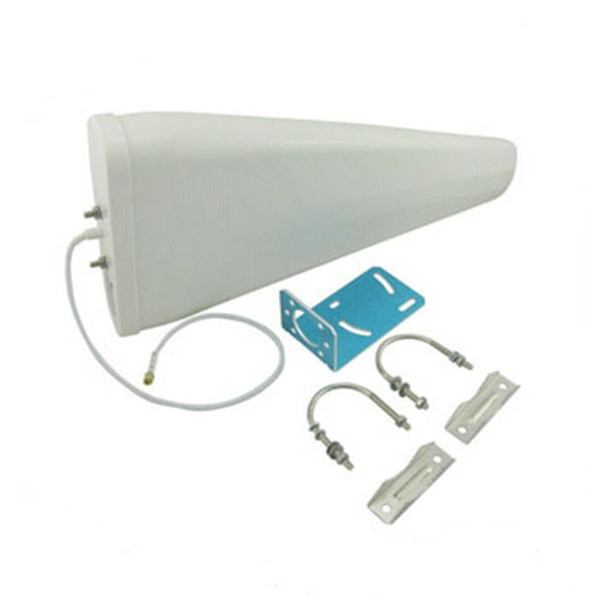

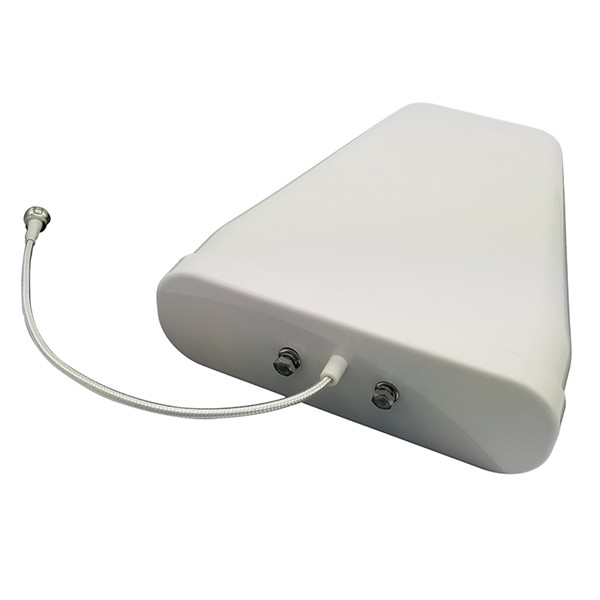

9dBi Log Periodic Directional Antenna HY-LPDA-9D

698-2700MHz Log Periodic Antenna

HY-LPDA-9D

Feature:

●Sealed with radome,good defense ability

●Standard bundled pole installation accessories

●Optimized dimension

●Designed with broadband technology

●Medium gain,low standing wave ratio

Application：

● GSM/CDMA/PCS/3G/WLAN/LTE

GSM/CDMA/PCS/3G/WLAN/LTE system

HY-LPDA-9D Electrical Specifications
Frequency range（MHz）	698～806	806～960	1710～2690
Bandwidth（MHz）	108	154	980
Gain（dBi）	6	8	9
Half-power beam width（°）	H：100 V：70	H：90 V：60	H：70 V：55
VSWR	≤2.0
Input Impedance（Ω）	50
Polarization	Vertical
Maximum input power（W）	50
Lightning protection	DC Ground
Input connector type	N Female
Mechanical Specifications
Dimensions (mm)	29520565
Antenna weight（kg）	0.75
Operating temperature（°c）	-40～60
Rated Wind Velocity（m/s）	60
Radome material	ABS
Radome color	白色white
Mounting hardware（mm）	￠35-￠50
