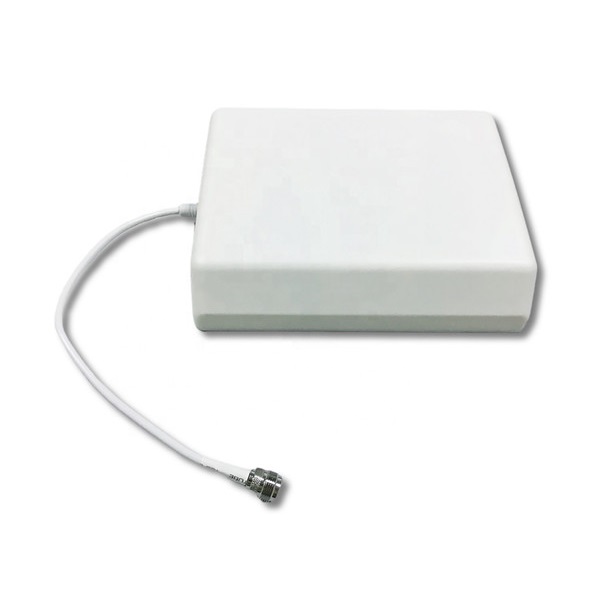

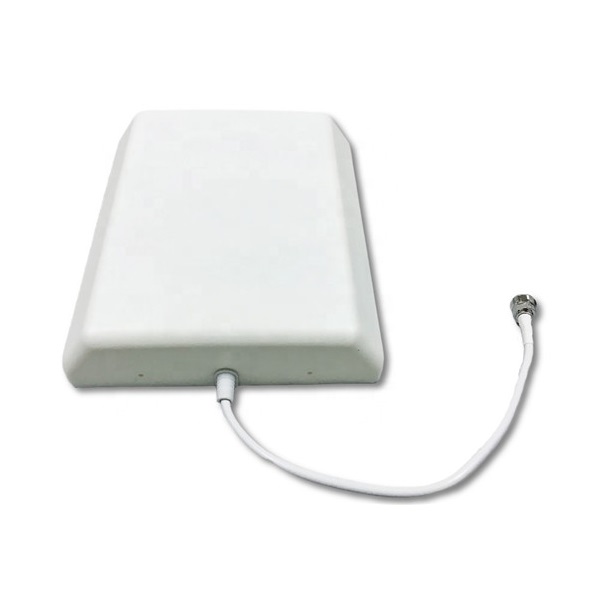

698-2700MHz Directional Outdoor Panel Antenna
HY-OPA-8D
Feature：
●High gain，strong anti-interference ability
●Good defense system
●Full day working
●Exquisite appearance
●Optimized dimension
Application：
●Indoor coverage system
● CDMA800/GSM900/3G/WLAN/LTE
CDMA800/GSM900/3G/WLAN/LTE system
HY-OPA-8D Electrical Specifications | |||
Frequency range（MHz） | 698～806 | 806～960 | 1710～2690 |
Bandwidth（MHz） | 108 | 154 | 980 |
Gain（dBi） | 5 | 7 | 10 |
Half-power beam width（°） | H：120 V：90 | H:70 V:55 | H：60 V：45 |
VSWR | ≤2.0 | ||
Input Impedance（Ω） | 50 | ||
Polarization | Vertical | ||
Maximum input power（W） | 50 | ||
Lightning protection | DC Ground | ||
Input connector type | N Female or Requested | ||
Mechanical Specifications | |||
Dimensions-mm (Height/Width/Depth) | 210*180*45 | ||
Antenna weight（kg） | 0.57 | ||
Operating temperature（°c） | -40～60 | ||
Rated Wind Velocity（m/s） | 60 | ||
Radome material | ABS | ||
Radome color | white | ||

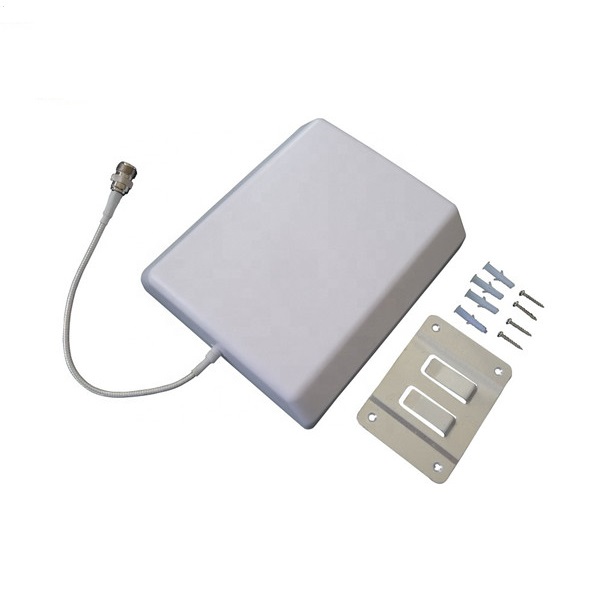

Mounting hardware（mm） | ￠35-￠50 | ||
